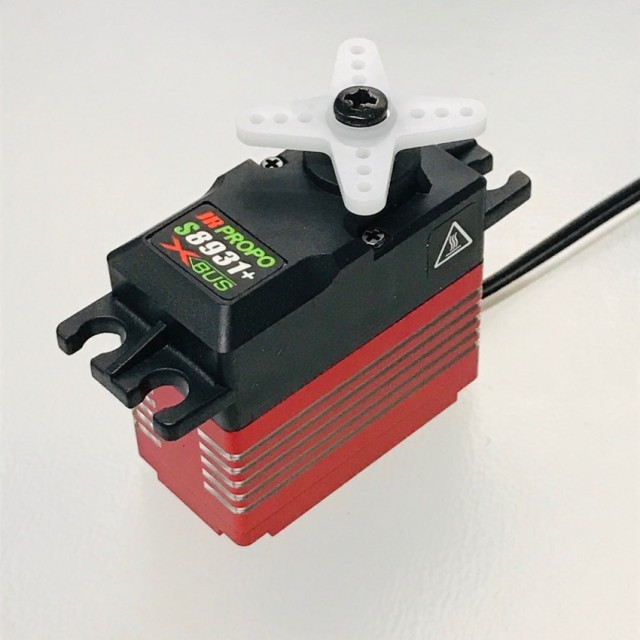

Same as JR PROPO "NX8931"
Wide Voltage Programmable Servo (For Large scale Aircrafts/Torque Type)
Torque: 23.0 (4.8V) / 29.6 (6.6V) / 36.5 (7.4V) /41.4 (8.4V) kg・cm
Speed: 0.20 (4.8V) / 0.16 (6.6V) / 0.13 (7.4V) / 0.11 (8.4V) Sec/60°
Dimension: 35mm x 21mm x 40.5mm
Length of lead harness: 300mm
Operating Voltage: 4.5V - 8.5V
Changes made to servo programming are immediately apparent. Not only can servo direction and travel be adjusted, but it is now possible to fine tune servo gain, dead band and boost to suit your aircraft and desired response. This precise setup allows servo hunting to be eliminated and precise feel maintained.
Double ball bearings
Slow start function
Compatible with any radio using PWM control
XBus compatible allowing:
*120 to 180 deg travel
* You can adjust Dumping, Holding, Deadband, etc.
Do not use this servo under the different voltage other than specified
If used on a large and Heavy control surface -> Try to adjust Dumping, Holding, Dead band, Boost, etc.
