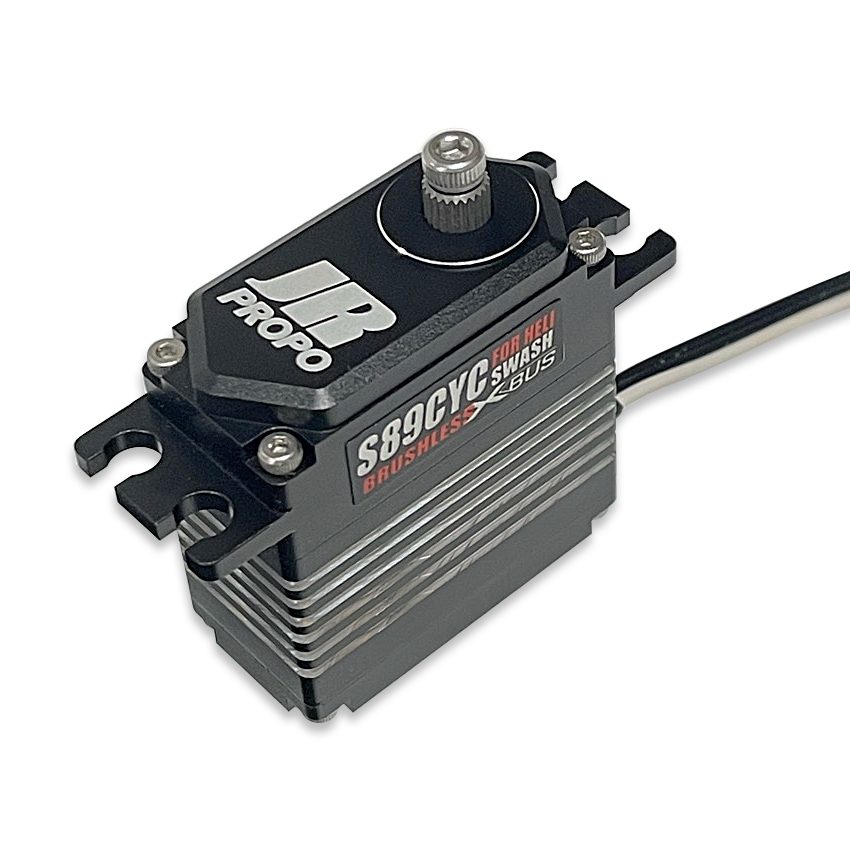

JR Propo S89CYC 2K N760 Nick Maxwell edition, JR spline 23T

Artikkelnr.: JR78851

JR Propo S89CYC 2K N760, JR spline 23T

NOK2 395,00 inkl. mva.

This servo is developed in cooperation with JR Propo and Nick Maxwell!

By default this servo is set-up with 760μSec neutral. Can be changed to 1500μSec or 1520μSec with servo programmer.

Output gear with JR spline (23T).



Stall Torque: 21 kgs  (6.0V) / 25.9 kgs  (7.4V) / 29.0 kgs (8.4V)kg・cm

Speed: 0.11 (6.0V) / 0.10 (7.4V) / 0.09 (8.4V) Sec/60°

Weight: 80g

Dimension: 35 x 20 x 40.5 mm

Length of lead harness: 300mm

Operating Voltage: 4.5V - 8.5V

■Programmable: Neutral, endpoint, gain etc( works with PWM and XBUS) 120°, 150°, 180°(Works with PWM and XBUS) Synchronization (Works with PWM and XBUS)

■Super steel full metal gear (Gear B brass)
■Wide valtage
■BIG upper ball bearing (12x6) bottom ball bearing (10x6)

■Special design brushless motor
