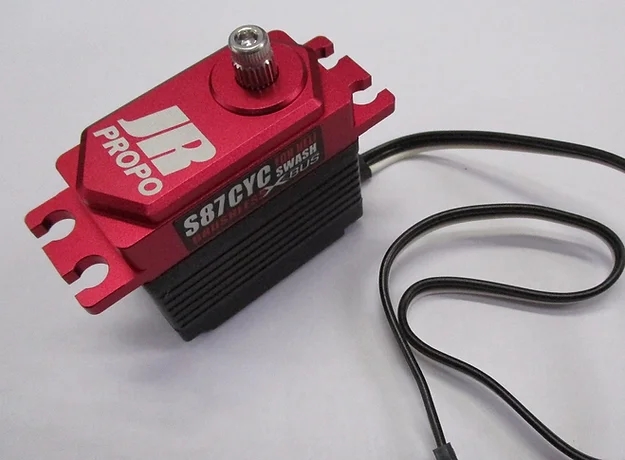

Perfect cyclic servo for F3C.

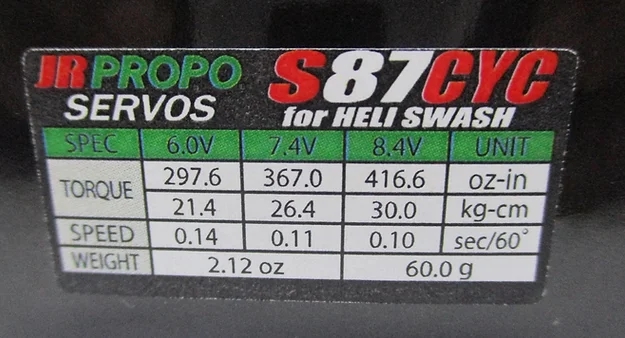

Stall Torque: 21.4kgs (6.6V) / 26.4kgs (7.4V) / 30.0kgs (8.4V)kg・cm
Speed: 0.14 (6.6V) / 0.11 (7.4V) / 0.10 (8.4V) Sec/60°
Weight: 63 g
Dimension: 40 x 20 x 39.3 mm
Length of lead harness: 300mm
Operating Voltage: 4.5V - 8.5V
Neutral, hold gain, damping, deadband, boost. Synchronization (Works with PWM and XBUS)
■Super steel full metal gear (Gear B plastic)
■Special design brushless motor. 4 poles. Normal is 2 poles.
The firmware in a 2k servo verifies the position of the servo arm two thousand times each second,
while the firmware found in previous servos verify the arm's position one thousand times per second.
This greater number of verifications makes for a very precise servo, and gives it a more "solid" feel.
