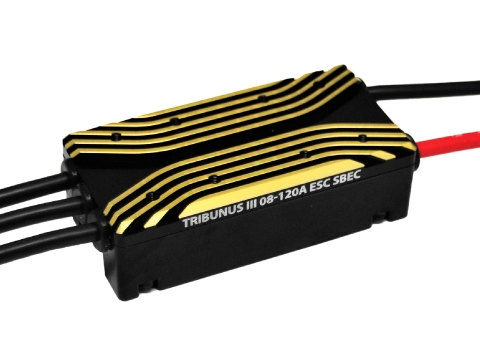

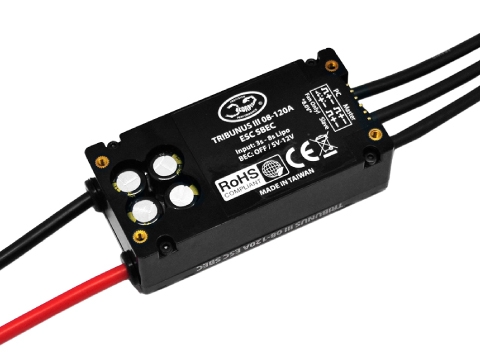

Scorpion Tribunus III 08-120 ESC SBEC

Artikkelnr.: SCTRI3-08-120

Scorpion Tribunus III 08-120 ESC SBEC

NOK2 795,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

Supports JR Propo Telemetry protocol. Thus perfect together with the Trinity gyro!

Specifications

Max Continuous Current* 120 Amps
Peak Current 160 Amps
Operating Voltage Range 11-35.0 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 12 Amps @ 8.1 V
Peak BEC Output 25 Amps/1s @ 8.1 V
On Resistance 0.33mOhms * 2

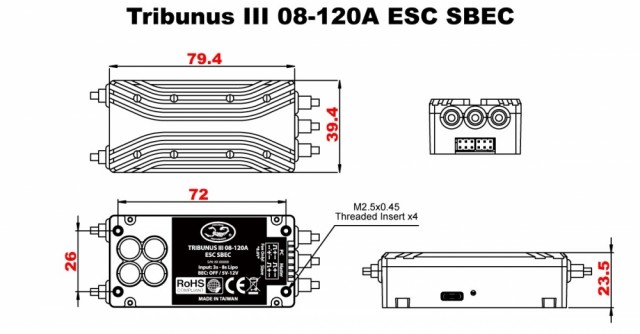

ESC Body Size 39.5 x 79.4 x 23.0 mm (1.55 x 3.12 x 0.90 in)
Integrated Mount Dimensions 26.0 x 72.0mm ( 1.02 x 2.83 in) / M2.5 Bolt
Weight (without wires) 113g (3.98oz)
Weight (with wires) 143g ( 5.04oz)
Drive frequency 8kHz - 32kHz

Supports real time telemetry with current, voltage, temperature, consumption, output power, BEC V and rpm for the following protocols:

- JR DMSS

- Mikado Vbar

- Futaba SBUS

- Jeti EXBUS

- FR.SKY S.Port

- Spectrum X.bus (with adaptor)

- Unlimited Other Systems (with unsolicited protocol)

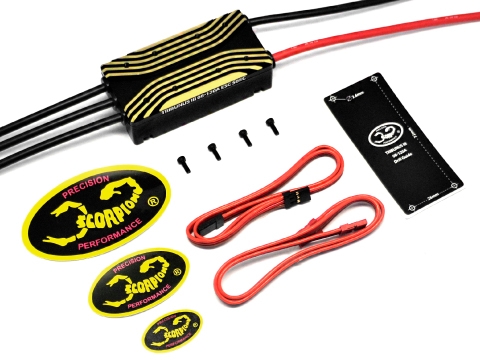

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x Drill Guide Sticker
