Scorpion Tribunus III 06-110 ESC SBEC

Artikkelnr.: SCTRI3-06-110

Scorpion Tribunus III 06-110 ESC SBEC

NOK2 095,00 inkl. mva.
På lager: 2 stk.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

Supports JR Propo Telemetry protocol. Thus perfect together with the Trinity gyro!

Specifications

Max Continuous Current 110 Amps
Peak Current 150 Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 20 Amps/1s @ 8.1 V
On Resistance 0.45mohms * 2

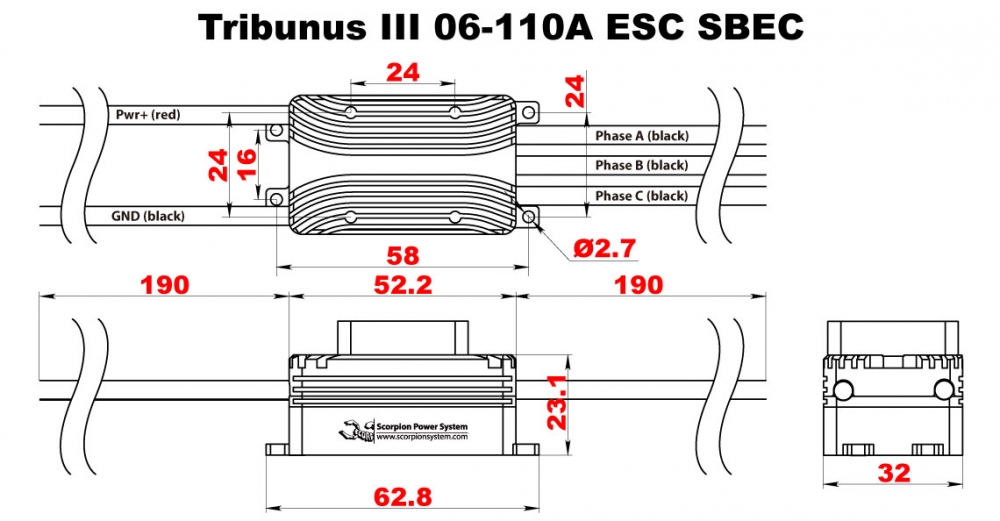

ESC Body Size 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in)
Mounting Tab Dimensions 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt
Weight (Without Connectors) 105g ( 3.70oz)
Drive frequency

8kHz - 32kHz



Supports real time telemetry with current, voltage, temperature, consumption, output power, BEC V and rpm for the following protocols:

- JR DMSS

- Mikado Vbar

- Futaba SBUS

- Jeti EXBUS

- FR.SKY S.Port

- Spectrum X.bus (with adaptor)

- Unlimited Other Systems (with unsolicited protocol)

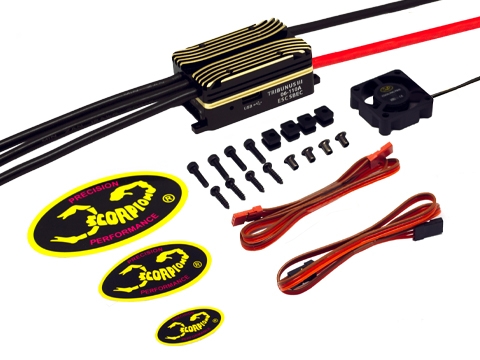

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables
1 x 30mm Cooling Fan
